Chimney crowns in Benbrook take constant hits from intense Texas sun, sudden downpours, and the occasional hard freeze that expands water inside hairline cracks. Most homes here sit on older brick chimneys built before modern flashing standards, so the crown often separates from the flue tile after years of thermal movement. We use a reinforced concrete mix with fiber additives and a steep pitch to shed water fast, then tie it into existing masonry with stainless steel lath. Skipping the bond break between crown and flue is the fastest way to see the same crack return within two winters.
Edge cases show up regularly around the Camp Bowie corridor where mature trees drop leaves that trap moisture against the crown for months. In those situations the damage travels down the flue liner and shows as brown streaks inside the firebox. We always pull the old crown completely rather than patch because partial repairs fail when the underlying mortar has already lost its bond. Tarrant County homes from the 1960s and 1970s frequently have single-course brick that makes crown replacement more delicate; one wrong chisel hit can loosen an entire side.
Homeowners sometimes try to coat the crown with standard masonry sealer, but that traps moisture and accelerates spalling once the first freeze arrives. We install a new crown only after confirming the flue is plumb and the chimney chase has no hidden voids. Proper curing takes at least 48 hours before any rain, which is why we schedule around the local forecast rather than rushing the job.
Technician insight
In Benbrook the thing that catches most people out with chimney crown repair is the way heavy spring rains followed by a quick freeze will open up a hairline crack on the south-facing side of older brick chimneys near 7901 Camp Bowie W Blvd. Homeowners usually notice the stain on the ceiling first and assume the roof is leaking when the crown has already lost its bond to the flue tile.
Crown failure on 1970s chimney
Heavy rain entered through cracks in the crown of a brick chimney in west Benbrook. Inspection showed the crown had separated from the flue tile and water was running down the chase. We removed the old crown, installed a new reinforced concrete cap with correct slope and expansion joints, then tested for leaks. The interior staining stopped and the chimney now sheds water properly.
How it works
- 1
On-site inspection
We examine the crown, flashing, and flue from the roof and interior to locate all active cracks and water paths.
- 2
Old crown removal
The existing crown is cut away in sections to avoid stressing the brick or flue tile beneath it.
- 3

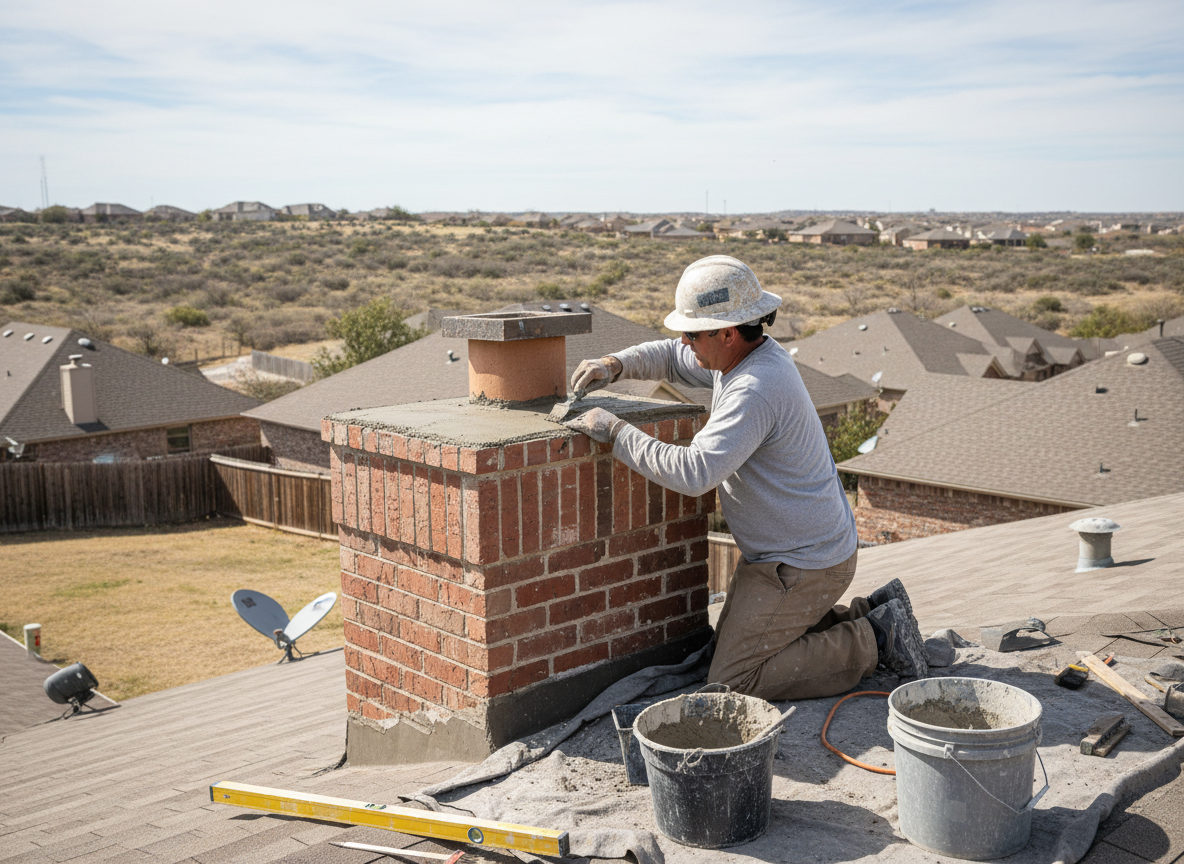

New crown installation
A fiber-reinforced concrete crown is formed with correct slope and expansion joints tied into the existing masonry.
- 4
Curing and final check
The new crown cures for two days, then we verify no water penetration with a controlled test.
Pricing
Upfront quotes after inspection; cost varies with chimney height and extent of brick damage.
